Fine Sun Sensor

Scope

This page describes the hardware properties of the CubeSense Sun and the mathematical description of the functionality of the Fine Sun Sensor.

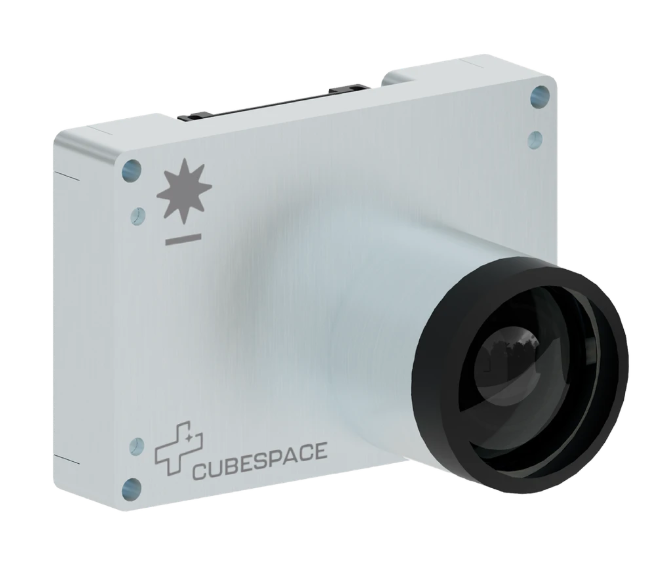

CubeSense Sun

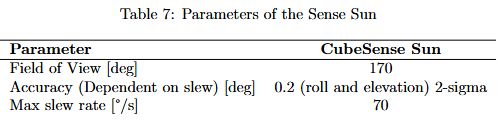

The CubeSense Sun has a Field of View of 170 degrees with a pre-calibrated distortion model and full albedo immunity. More on this on the CubeSpace website It is mounted on the +x surface. The performance parameters are documented in the following Table:

Mathematical Description

A fine sun sensor is a sensor that returns the sun vector $\vec{s}$ in the sensor's coordinate frame corrupted by noise $n_{FSS} \sim N(0, \sigma_{FSS}^2)$: $\vec{s}_{measured} = \vec{s} + n_{FSS}.$
